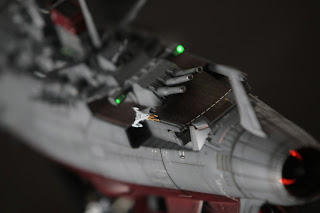

Space Battleship Yamato 1/500 scale

Additional Electronics
- Arduino Nano
- IR remote module
- DFplayer sound module
- 3W sound amplifier and speaker
- combination of LEDs
 - small SMDs
 - regular LEDs
 - WS2812B addressable LEDs



//Arduino Code
#include "IRremote.h"
#include "Arduino.h"
#include "SoftwareSerial.h"
#include "DFRobotDFPlayerMini.h"
#include <FastLED.h>

// How many leds in your strip?
#define NUM_LEDS 4
#define DATA_PIN 5
CRGB leds[NUM_LEDS];
SoftwareSerial mySoftwareSerial(13, 11); // RX, TX
DFRobotDFPlayerMini myDFPlayer;
void printDetail(uint8_t type, int value);

int sub_engine = 4;
int main_engine1 = 2;
int main_engine2 = 3;
int main_engine3 = A5;


int hado_collect0 = A0;
int hado_collect1 = A1;
int hado_collect2 = A2;
int hado_collect3 = A3;
int receiver = A4;


int hado_red = 9;
int hado_blue = 6;


int interior_lights = 7;
int search_lights = 8;

//2   A7
//pWM 5 10
// 12

int eswitch=0;

/*-----( Declare objects )-----*/
IRrecv irrecv(receiver);           // create instance of 'irrecv'
decode_results results;            // create instance of 'decode_results'
/*-----( Declare Variables )-----*/

void setup() {
  // put your setup code here, to run once:
  mySoftwareSerial.begin(9600);
  Serial.begin(115200);
  FastLED.addLeds<NEOPIXEL, DATA_PIN>(leds, NUM_LEDS);

  Serial.println();
  Serial.println(F("DFRobot DFPlayer Mini Demo"));
  Serial.println(F("Initializing DFPlayer ... (May take 3~5 seconds)"));

  if (!myDFPlayer.begin(mySoftwareSerial)) {  //Use softwareSerial to communicate with mp3.
    Serial.println(F("Unable to begin:"));
    Serial.println(F("1.Please recheck the connection!"));
    Serial.println(F("2.Please insert the SD card!"));
    while(true){
      delay(0); // Code to compatible with ESP8266 watch dog.
    }
  }
  Serial.println(F("DFPlayer Mini online."));

  myDFPlayer.volume(30);  //Set volume value. From 0 to 30
 //Play the first mp3
irrecv.enableIRIn(); // Start the receiver
pinMode(hado_collect0, OUTPUT);
pinMode(hado_collect1, OUTPUT);
pinMode(hado_collect2, OUTPUT);
pinMode(hado_collect3, OUTPUT);
pinMode(hado_red, OUTPUT);

pinMode(hado_blue, OUTPUT);


pinMode(main_engine1, OUTPUT);
pinMode(main_engine2, OUTPUT);
pinMode(main_engine3, OUTPUT);
pinMode(sub_engine, OUTPUT);
pinMode(interior_lights, OUTPUT);
pinMode(search_lights, OUTPUT);
digitalWrite(interior_lights, LOW);
digitalWrite(search_lights, LOW);

  for (int inleds = 0 ; inleds<NUM_LEDS;inleds++){
      leds[inleds].red   = 0;
      leds[inleds].green = 0;
      leds[inleds].blue  = 0;
      FastLED.show();


  }
}

void loop() {


  if (irrecv.decode(&results)) // have we received an IR signal?

  {
//  Serial.println(results.value, HEX);  UN Comment to see raw values


    switch(results.value)

      {
      case 0xFFA25D: Serial.println("POWER");break;
      case 0xFF629D: Serial.println("MODE"); break;
      case 0xFFE21D: Serial.println("MUTE");   break;
      case 0xFF22DD: Serial.println("PLAY/PAUSE");    break;
      case 0xFF02FD: Serial.println("BACK");    break;
      case 0xFFC23D: Serial.println("NEXT");   break;
      case 0xFFE01F: Serial.println("EQ"); break;
      case 0xFFA857: Serial.println("MINUS"); break;
      case 0xFF906F: Serial.println("PLUS"); break;
      case 0xFF6897: Serial.println(" 0");    break;
      case 0xFF9867: Serial.println(" SHUFFLE");    break;
      case 0xFFB04F: Serial.println(" USD");    break;
      case 0xFF30CF: Serial.println(" 1");engine_spinup(1);  break;
      case 551520375: Serial.println(" 1");engine_spinup(1);  break;
      case 0xFF18E7: Serial.println(" 2");  engine_spindown();  break;
      case 551504055: Serial.println(" 2");  engine_spindown();  break;

      case 0xFF7A85: Serial.println(" 3");  go_hado(1,0);    break;
      case 551536695: Serial.println(" 3");  go_hado(1,0);    break;


      case 551495895: Serial.println(" 3"); shock_cannon_seq(1);   break;

      case 0xFF10EF: Serial.println(" 4");  shock_cannon_seq(1);  break;
      case 0xFF38C7: Serial.println(" 5");  theme_seq(0);  break;
      case 551528535: Serial.println(" 5");  theme_seq(0);  break;
      case 0xFF5AA5: Serial.println(" 6");    break;
      case 0xFF42BD: Serial.println(" 7");    break;
      case 0xFF4AB5: Serial.println(" 8");    break;
      case 0xFF52AD: Serial.println(" 9");  theme_seq(1);    break;



      default:
        Serial.println(results.value);

      }// End Case

      delay(500); // Do not get immediate repeat
    irrecv.resume(); // receive the next value
  }


}
void theme_seq(int eng_version){
   engine_spindown();
   delay(1000);
   if(eng_version){
      myDFPlayer.play(6);
    }else{
      myDFPlayer.play(1);
    }
   engine_spinup(0);
   delay(14000);
   shoot_cannon(2);
   shoot_cannon(1);
   shoot_cannon(0);
   for(int rand_fire=0;rand_fire<=11;rand_fire++){
    shoot_cannon(random(0,3));
   }
   delay(100);
   go_hado(0,1);
}
void shock_cannon_seq(int music_play){
  Serial.println("Shock Cannon Start");
  int shock_cannon_dur=5500;
   if(music_play){
     delay(1000);
     myDFPlayer.play(4);
   }

 delay(16900);
   shoot_cannon(2);
   shoot_cannon(1);
   shoot_cannon(0);
   for(int rand_fire=0;rand_fire<=14;rand_fire++){
    shoot_cannon(random(0,3));
    }
 delay(100);

 //  Serial.println(shock_count);
}
void shoot_cannon(int can_num){
   for(int red_start=0;red_start<=25;red_start++){
      leds[can_num].red   = red_start;
      leds[can_num].green = 0;
      leds[can_num].blue  = 0;
      FastLED.show();
      delay(5);
   }
      leds[can_num].red   = 0;
      leds[can_num].green = 0;
      leds[can_num].blue  = 256;
      FastLED.show();
      delay(5);
  for(int blastc=256;blastc>=0;blastc--){
      //if(blastc-20>0)leds[can_num].red   = blastc-20;
      //if(blastc-10>0)leds[can_num].green = blastc-10;
      leds[can_num].red   = 0;
      leds[can_num].green = 0;
      leds[can_num].blue  = blastc;
      FastLED.show();
   }

}
void go_hado(int music_play,int mini_hado){

    int hado_spin=0;
    int hado_gap=150;
    int hado_decay=7;
    int hado_duration=0;
    int mod_red_cnt=0;
    int brightness_counter=0;
    int red_brightness=0;
    int blue_brightness=0;
    int green_brightness=0;
    int blue_step=0;
    int bluend;
    int hado_stop=7125;
    int flickerpnt=3600;
    int powerup=6400;
    int powerupcnt=0;
    int startcount=0;
    int fadeout=11400;
    int blue_rotate=0;
    if(mini_hado){
      startcount=4590;
    }

    Serial.println("Hado Start");
    if(music_play){
      delay(1000);
      myDFPlayer.play(3);
    }
   for(int hado_count=startcount;hado_count<=12800;hado_count++){
    delay(6);
      hado_spin++;
      mod_red_cnt++;
     if(hado_count<hado_stop){
      if(hado_count>2800){
          green_brightness++;
          red_brightness++;
          //blue_brightness++;
            if(green_brightness>45)green_brightness=45;
            if(blue_brightness>40)blue_brightness=40;
            if(red_brightness>80)red_brightness=80;

      }else if(hado_count>4500){
          brightness_counter++;
          green_brightness++;
            if(brightness_counter>130)brightness_counter=130;
            if(green_brightness>150)green_brightness=150;
      }else{
        if(mod_red_cnt>68){
          brightness_counter++;
          mod_red_cnt=0;
          if(brightness_counter>50)brightness_counter=50;
        }else{
          red_brightness=brightness_counter;

        }
      }
    if(hado_count>4500){
          if(blue_rotate>200){
            blue_brightness++;
            blue_rotate=0;
          }
          blue_rotate++;
        }
        if(blue_brightness>10)blue_brightness=10;
        analogWrite(hado_blue, blue_brightness);


      leds[3].red   = red_brightness;
      leds[3].green = green_brightness;
      leds[3].blue  = 0;
      if(hado_count>flickerpnt&&hado_count<flickerpnt+310){
            if( random(1,6)==1){
              leds[3].red   = 255;
              leds[3].green = 255;
              leds[3].blue  = 255;

            }
      }
      if(hado_count>powerup&&hado_count<hado_stop){

              if(powerupcnt<255)powerupcnt++;
              if(powerupcnt>red_brightness){
                  red_brightness=powerupcnt;
              }
              leds[3].red   = red_brightness;
              leds[3].green = powerupcnt;
              leds[3].blue  = powerupcnt;
              digitalWrite(interior_lights, LOW);

      }

      FastLED.show();
     }else{
       if(hado_count>hado_stop&&hado_count<(hado_stop+187)){
          brightness_counter=255;
          digitalWrite(search_lights, LOW);

                      leds[3].red   = 0;
                      leds[3].green = 0;
                      leds[3].blue  = 0;
                      FastLED.show();
                  analogWrite(hado_blue, 0);
       }else{

          if(brightness_counter>100)brightness_counter=brightness_counter-1;
          if(hado_count>fadeout){
                    if(mod_red_cnt>10){
                      brightness_counter--;
                      mod_red_cnt=0;
                      if(brightness_counter<0)brightness_counter=0;
                    }
                  if( random(1,3)==1){
                      leds[3].red   = 0;
                      leds[3].green = 0;
                      leds[3].blue  = 0;
                      FastLED.show();
                      analogWrite(hado_blue, 0);
                  }else{
                        blue_brightness=brightness_counter;
                        if(brightness_counter<120){
                          blue_brightness=blue_brightness-50;

                        }
                        if(blue_brightness<0)blue_brightness=0;
                        leds[3].red   = brightness_counter;
                        leds[3].green = 0;
                        leds[3].blue  = 0;
                        FastLED.show();
                        analogWrite(hado_blue, blue_brightness);
                  }
          }else{
            if( random(1,6)==1){
                  //analogWrite(hado_red, 170);
                  analogWrite(hado_blue, 255);

            }else{
                 // analogWrite(hado_red, brightness_counter);
                  analogWrite(hado_blue, brightness_counter);
            }
          }
        }
      }
     Serial.println(hado_count);

     if(hado_count<hado_stop){
     if(hado_spin<=hado_gap){
       digitalWrite(hado_collect0,HIGH);
     }else{
       digitalWrite(hado_collect0,LOW);
     }
     if(hado_spin>=hado_gap&&hado_spin<=hado_gap*2){
       digitalWrite(hado_collect1,HIGH);
     }else{
       digitalWrite(hado_collect1,LOW);
     }
     if(hado_spin>=hado_gap*2&&hado_spin<=hado_gap*3){
       digitalWrite(hado_collect2,HIGH);
     }else{
       digitalWrite(hado_collect2,LOW);
     }
     if(hado_spin>=hado_gap*3){
       digitalWrite(hado_collect3,HIGH);
     }else{
       digitalWrite(hado_collect3,LOW);
     }
     if(hado_spin>=hado_gap*4){
      hado_spin=0;
      hado_gap=hado_gap-hado_decay;
      if(hado_count>4200){
        hado_decay=8;
      }
      if(hado_gap<3){
        hado_gap=3;
       }
     }
     }else{
       digitalWrite(hado_collect0,LOW);
       digitalWrite(hado_collect1,LOW);
       digitalWrite(hado_collect2,LOW);
       digitalWrite(hado_collect3,LOW);
      }


   }
   digitalWrite(interior_lights, HIGH);
   digitalWrite(search_lights, HIGH);

}


void engine_spinup(int music_play){
  digitalWrite(interior_lights, HIGH);
  int spin_step=0;
  int spin_delay=250;
  int spin_decay=1;
  int spin_dur  = 1955;
Serial.println("Engine Start");

 if(eswitch==0){
  if(music_play){
    delay(1000);
    myDFPlayer.play(2);
  }else{
    spin_dur=1200;
  }



 sputter(0);
  for(int spinup_cnt=0;spinup_cnt<=spin_dur;spinup_cnt++){
    spin_step++;
   // Serial.println(spinup_cnt);
     if(spin_step==1){
        digitalWrite(main_engine1, HIGH);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine3, LOW);
      }
      if(spin_step==2){
        digitalWrite(main_engine2, HIGH);
        digitalWrite(main_engine3, LOW);
        digitalWrite(main_engine1, LOW);
      }
      if(spin_step==3){
        digitalWrite(main_engine3, HIGH);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine1, LOW);
      }
      if(spinup_cnt==20){
          spin_delay=100;
      }
    delay(spin_delay);
    if(spin_step>=3){
      spin_step=0;

      spin_delay=spin_delay-spin_decay;
      if(spinup_cnt>15){
        spin_delay=spin_delay-(spin_decay*2);
      }
      if(spin_delay<15)spin_delay=15;
    }
  }
  digitalWrite(search_lights, HIGH);
 eswitch=1;
Serial.println("Engine Blast");
 sputter(1);
 sputter(1);
 sputter(1);


 engine_status(1);
 }
}

void engine_status(int eswitch){
      //Serial.println(eswitch);
      if(eswitch==1){
        digitalWrite(main_engine3, HIGH);
        digitalWrite(main_engine2, HIGH);
        digitalWrite(main_engine1, HIGH);
        digitalWrite(sub_engine, HIGH);
      }else{
        digitalWrite(main_engine3, LOW);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine1, LOW);
        digitalWrite(sub_engine, LOW);
      }
      delay(1000);
}
void engine_spindown(){

  int spin_step=0;
  int spin_delay=0;
  int spin_decay=2;


  if(eswitch==1){
   delay(1000);
   myDFPlayer.play(5);
   sputter(1);
   digitalWrite(sub_engine, LOW);
    for(int spinup_cnt=0;spinup_cnt<=150;spinup_cnt++){
      spin_step++;
       //Serial.println(spinup_cnt);
      if(spin_step==1){
        digitalWrite(main_engine1, HIGH);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine3, LOW);
      }
      if(spin_step==2){
        digitalWrite(main_engine2, HIGH);
        digitalWrite(main_engine3, LOW);
        digitalWrite(main_engine1, LOW);
      }
      if(spin_step==3){
        digitalWrite(main_engine3, HIGH);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine1, LOW);
      }
      delay(spin_delay);
      if(spin_step>=3){
        spin_step=0;

        spin_delay=spin_delay+spin_decay;
        if(spinup_cnt>100){
          spin_delay=spin_delay+spin_decay*2;

         }
        if(spinup_cnt>130){
          spin_delay=spin_delay+spin_decay*4;

         }
      }
        if(spinup_cnt>130){
          spin_delay=spin_delay+spin_decay*2;

         }
    }
     eswitch=0;
   engine_status(0);
   digitalWrite(interior_lights, LOW);
   digitalWrite(search_lights, LOW);
  }

}

void sputter(int sputter_sub){
  for(int sput=0;sput<=70;sput++){
     if( random(1,3)==1){
        digitalWrite(main_engine3, LOW);
        digitalWrite(main_engine2, LOW);
        digitalWrite(main_engine1, LOW);
        if(sputter_sub==1)digitalWrite(sub_engine, LOW);
        delay(random(30,35));
     }else{
        digitalWrite(main_engine3, HIGH);
        digitalWrite(main_engine2, HIGH);
        digitalWrite(main_engine1, HIGH);
        if(sputter_sub==1)digitalWrite(sub_engine, HIGH);
     }
  }

}
void printDetail(uint8_t type, int value){
  switch (type) {
    case TimeOut:
      Serial.println(F("Time Out!"));
      break;
    case WrongStack:
      Serial.println(F("Stack Wrong!"));
      break;
    case DFPlayerCardInserted:
      Serial.println(F("Card Inserted!"));
      break;
    case DFPlayerCardRemoved:
      Serial.println(F("Card Removed!"));
      break;
    case DFPlayerCardOnline:
      Serial.println(F("Card Online!"));
      break;
    case DFPlayerUSBInserted:
      Serial.println("USB Inserted!");
      break;
    case DFPlayerUSBRemoved:
      Serial.println("USB Removed!");
      break;
    case DFPlayerPlayFinished:
      Serial.print(F("Number:"));
      Serial.print(value);
      Serial.println(F(" Play Finished!"));
      break;
    case DFPlayerError:
      Serial.print(F("DFPlayerError:"));
      switch (value) {
        case Busy:
          Serial.println(F("Card not found"));
          break;
        case Sleeping:
          Serial.println(F("Sleeping"));
          break;
        case SerialWrongStack:
          Serial.println(F("Get Wrong Stack"));
          break;
        case CheckSumNotMatch:
          Serial.println(F("Check Sum Not Match"));
          break;
        case FileIndexOut:
          Serial.println(F("File Index Out of Bound"));
          break;
        case FileMismatch:
          Serial.println(F("Cannot Find File"));
          break;
        case Advertise:
          Serial.println(F("In Advertise"));
          break;
        default:
          break;
      }
      break;
    default:
      break;
  }

}
